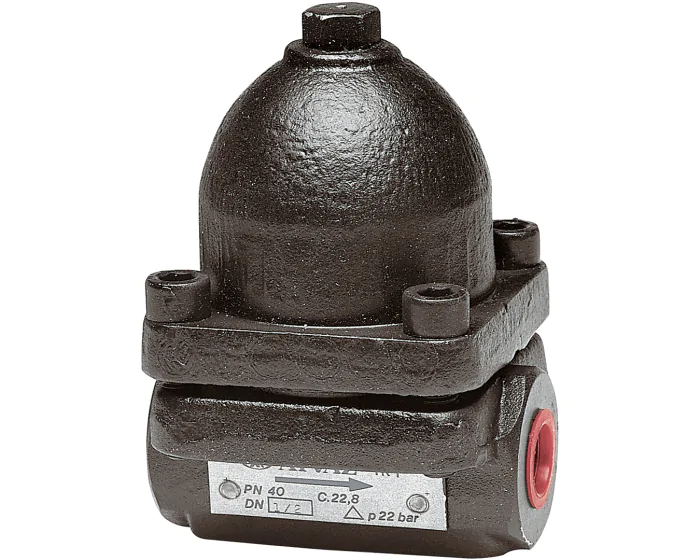

Bi-metallic automatic air vent, forged steel body A 105, internal stainless steel mechanism, adjustable discharge capacity and condensate temperature. PS: 32 bar, TS: 250°C, DP max: 22 bar, G threaded.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Delta P (bar) | 22 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 425.0 |
| Body material | Carbon steel A105 (1.0460) |
| PS (bar) | 32 |
| Connections | BSP FF |
| TS max (°C) | 250 |
| Trap type | Bi-metallic |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Carbon steel A105 (1.0460) DN15 - 1/2'' | 153604 | S1013125 |
€258.46
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A105 (1.0460) DN20 - 3/4'' | 153605 | S1013126 |
€258.46
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A105 (1.0460) DN25 - 1'' | 153606 | S1013127 |
€258.46
(excl. btw)
|
add to cart |
